| Build Volume | 280 x 280 x 800 mm (11 x 11 x 31 in.) |
| Layer Resolution Low | 200 micron (0.008 in.) |
| Layer Resolution High | 100 micron (0.004 in.) |
| Brand | 3Dquality |
| Machine type | 3D Printer |
| Technology | FDM (Fused Deposition Modeling) |
| Materials | PLA, ABS, HIPS, FLEX (Elastic TPE) |
| Website | |
| Average Price | $4,310.00 |
We took the best of Prism Pro, added the latest innovations and created Prism Pro V2 for you.
New Prism Pro version is significantly better and more modern than the existing one. Different advantages contribute to large printable area, high quality and favourable price. On the whole, the new 3D-printer version has become more reliable and convenient, and ensures more exact and higher-quality printing.
By comparison with the predecessor, the new model has the following advantages:
A more powerful control card on 32-bit processor makes possible to significantly increase the speed and accuracy when printing complex objects due to calculation process acceleration. Besides, the new card is more reliable which ensures uninterruptable many-hours-long printing. Finally, the users can control the printer via Wi-Fi.
New Russian-language screen with frontal insertion of a SD-card ensures a more reliable 3D-printer control.
Metal feeding device ensures a more exact and reliable string supply.
A modified diagonals’ pressure device is several times more endurable and reliable.
A modified belt tension device has a longer service life, and it is more reliable, and it controls tension more accurately.
The reel holder has been moved outside, and the vertical string supply now prevents a possibility of plastic twisting and, consequently, a possibility of printing process interrupting.
A sensor detecting the presence of plastic (plastic presence sensor) puts the printing to a pause providing for a possibility to resume the job at the current position in case if there is no more string in the reel.
Special worktable surface ensures details’ adhesion without the use of additional means.
New control functions facilitate the 3D-printer control process.

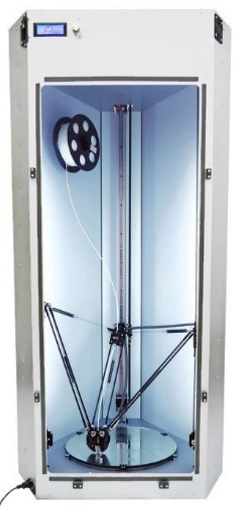

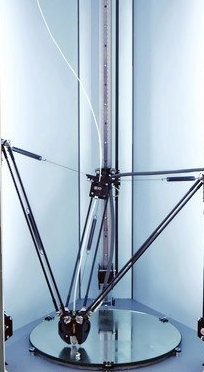

Prism Pro V2 is a professional level FDM-printer manufactured in compliance with “Delta-robot” layout. The printer is equipped with an automatic calibration, a heated worktable, a closed process chamber and an extruder cooling system. Prism Pro prints models with a diameter of up to 400 mm and a height up to 800 mm, while the minimum layer thickness is from 0.05 mm. Due to the fact that the model is blown on two sides during printing and there is a string pre-pressure mechanism, the printer can use all main types of plastic: ABS, PLA, Watson, HIPS and Flex.
